BARE KNUCKLE CUSTOM 550K CTS PUSH-PULL POTENTIOMETERS
Our Bare Knuckle Custom Audio Taper 550K CTS standard shaft push-pull potentiometers are specially manufactured by CTS to Bare Knuckle specifications. Featuring smooth rotational torque, a tight ±10% tolerance and a choice of audio tapers, these custom-spec pots offer reliable performance and precise control.
The integrated push-pull switch adds extra switching flexibility, making them ideal for wiring modifications such as coil splits, series/parallel switching and other custom pickup configurations.
Suitable for both volume and tone applications, these 550K pots are an excellent choice for guitars fitted with humbuckers or P90s where clarity, detail and extended high-frequency response are desired.
A circlip is fitted to the shaft for increased durability and long-term reliability.
Available in 2 Taper Options
A - 10% Audio Taper (Recommended by F&G for Tone)
A fast roll-off from maximum volume, delivering a snappy response that is ideal for quick volume swell techniques.
J - 30% Audio Taper (Recommended by F&G for Volume)
A smoother, more gradual roll-off that provides greater fine-tuning control, particularly throughout the lower half of the dial.

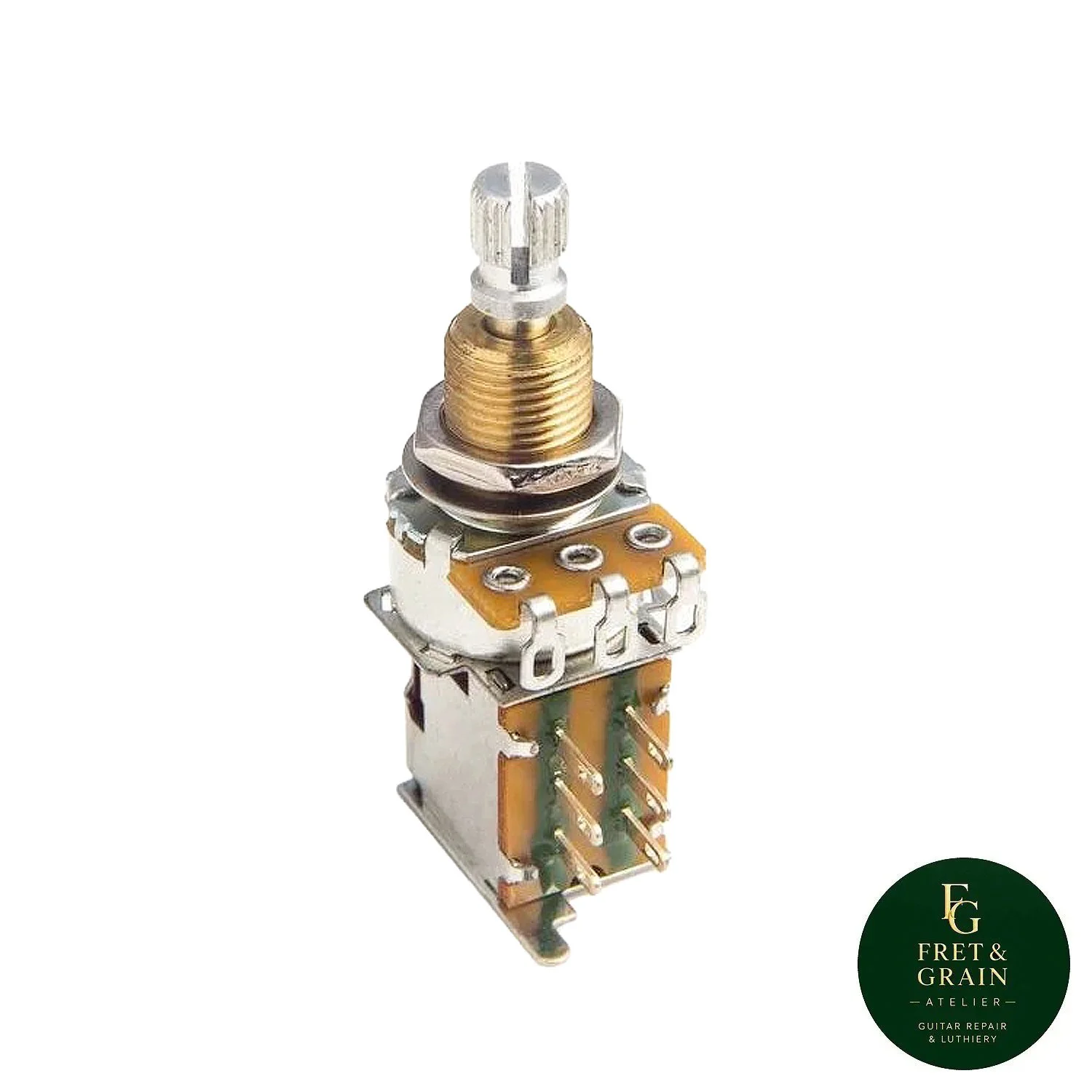

PUSH-PUSH STANDARD SHAFT 500K POTENTIOMETER
The Push-Push Standard Shaft 500K Potentiometer combines a with an integrated push-push switch, allowing additional wiring options without extra switches.
Simply press the knob to engage or disengage the switch. Ideal for coil splits, series/parallel wiring, phase switching and other custom modifications.
Key Features
500K potentiometer
Standard shaft
Integrated push-push DPDT switch
Quick press-to-switch operation
Ideal for humbuckers and custom wiring
Made in Korea
HOLYDIVER HUMBUCKER
The Holydiver is a celebration of the original ’80s hot-rodded humbuckers, combining high output with the mature, earthy voice of an Alnico V-powered rock pickup.
The Holydiver delivers a progressive, modern voice with a wide dynamic range. Fat mids, warm and compact bass, and harmonically rich highs come together to create a powerful yet versatile humbucker with exceptional control.
From solid, contemporary clean tones to aggressive high-gain saturation, the Holydiver is ideal for technically demanding players who need both power and versatility.
Its wide dynamic range and pronounced midrange make it particularly effective for adding depth and body to lighter-weight, bolt-on neck guitars. The smoother, sweeter high end also makes it an excellent choice for high-gain applications where clarity and control are essential.
APPLICATIONS
Blues Rock, Pop, Garage, Hard Rock, Shred, Fusion, Progressive and Technical Metal, Thrash.
SUITABILITY
Particularly well suited to double-cut, solid-body and bolt-on neck guitars, as well as brighter instruments that would benefit from added body, depth and a sweeter high-end response.
SPECIFICATION
Bridge
DC Resistance: 15.9 kΩ
Magnet: Alnico 5
Neck
DC Resistance: 7.9 kΩ
Magnet: Alnico 5
CONFIGURATION
Bridge
Strings: 6
Top Bobbin Colour: Cream
Bottom Bobbin Colour: Black
Cover: No
Pole Screws: Nickel Screw
Pole Screw Spacing: 53 mm
Etch: No
Covered Holes: No
Leg Length: Short
Conductors: Four
Magnet: Alnico 5
JUGGERNAUT HUMBUCKER
The Juggernaut is a signature humbucker set designed with Periphery guitarist Misha Mansoor, combining massive low-end weight, aggressive attack and exceptional clarity with the dynamic response needed for modern progressive playing.
The bridge pickup combines Alnico V and Ceramic VIII magnets with symmetrically hand-wound twin screw coils to deliver a powerful and focused response. Its tight, controlled bass and substantial midrange provide exceptional definition through complex chord voicings, while the rich, vocal high end maintains clarity and articulation under heavy gain.
The neck pickup uses a custom-sized Alnico V magnet to produce a full, musical response with excellent dynamics and articulation. Clean tones are broad and powerful, while higher-gain sounds remain fluid and defined, making the pickup equally effective for melodic leads, sustained passages and detailed chord work.
The Juggernaut is designed to combine the tightness and attack associated with ceramic pickups with the dynamics and musical response of Alnico. It responds naturally to picking intensity, remaining full and controlled with a lighter touch while becoming increasingly aggressive when driven harder.
With four-conductor wiring, the Juggernaut set also provides additional tonal flexibility through advanced wiring configurations, making it suitable for players who require multiple usable voices from a modern high-performance instrument.
APPLICATIONS
Progressive Rock, Progressive Metal, Thrash, Death Metal, Punk, Hardcore, Hard Rock, Metalcore and Extreme Metal.
SUITABILITY
Any solid-body guitar, including heavily detuned and extended-range instruments. Ideal for guitars that require tighter bass response, increased midrange focus, strong note definition and a rich, vocal high end.
SPECIFICATION
Bridge
DC Resistance: 13.3 kΩ
Magnet: Alnico / Ceramic Mix
Neck
DC Resistance: 8.9 kΩ
Magnet: Alnico 5
CONFIGURATION
Bridge
Strings: 6
Top Bobbin Colour: Parchment
Bottom Bobbin Colour: Wood Pastel Blue
Cover: Open
Pole Screws: Burnt Chrome Screw
Pole Screw Spacing: 53 mm
Etch: None
Covered Holes: No
Leg Length: Short Triangular
Conductors: Four
Neck
Strings: 6
Top Bobbin Colour: Wood Pastel Blue
Bottom Bobbin Colour: Parchment
Cover: Open
Pole Screws: Burnt Chrome Screw
Pole Screw Spacing: 50 mm
Etch: None
Covered Holes: No
Leg Length: Short Triangular
Conductors: Four
All Boot Camp Tele coils are hand-wound and built around a classic vintage-inspired specification. They feature flat-profile Alnico rod magnets, distinctive red and black flatwork, and matching cloth-covered hookup wire.
The bridge pickup comes fitted with a copper-plated steel baseplate as standard, while the stock-wound, stock-polarity neck pickup features a vintage-correct deep-drawn chrome-plated cover.
Designed to deliver a warm, bright and dynamic tone, the Boot Camp Tele set is well suited to a wide range of classic and contemporary playing styles.
Applications
Ideal for:
Blues
Rock
Country
Pop
Alternative
Suitability
Suitable for any Tele-style guitar that would benefit from a warm, bright and responsive tone with plenty of dynamic character.
Specifications
Bridge
DC Resistance: 7.3 kΩ
Magnet: Alnico II
Copper-plated steel baseplate
Neck
DC Resistance: 5.7 kΩ
Magnet: Alnico II
Vintage-style deep-drawn chrome-plated cover
The Old Guard pickups are designed for players seeking classic, expressive tones with an open and dynamic character. Featuring Alnico II magnets and a low-output design, they deliver a warm yet bright response with excellent clarity and touch sensitivity.
Well suited for blues, rock, country, pop, and alternative, the Old Guard offers a versatile voice that works beautifully across a wide range of playing styles.
Applications
Ideal for:
Blues
Rock
Country
Pop
Alternative
Suitability
Suitable for solid-body, semi-hollow, and hollow-body guitars, or any instrument that would benefit from a warm, bright, open, and dynamic tone.
Specifications
Bridge
DC Resistance: 9 kΩ
Magnet: Alnico II
Neck
DC Resistance: 7.9 kΩ
Magnet: Alnico II

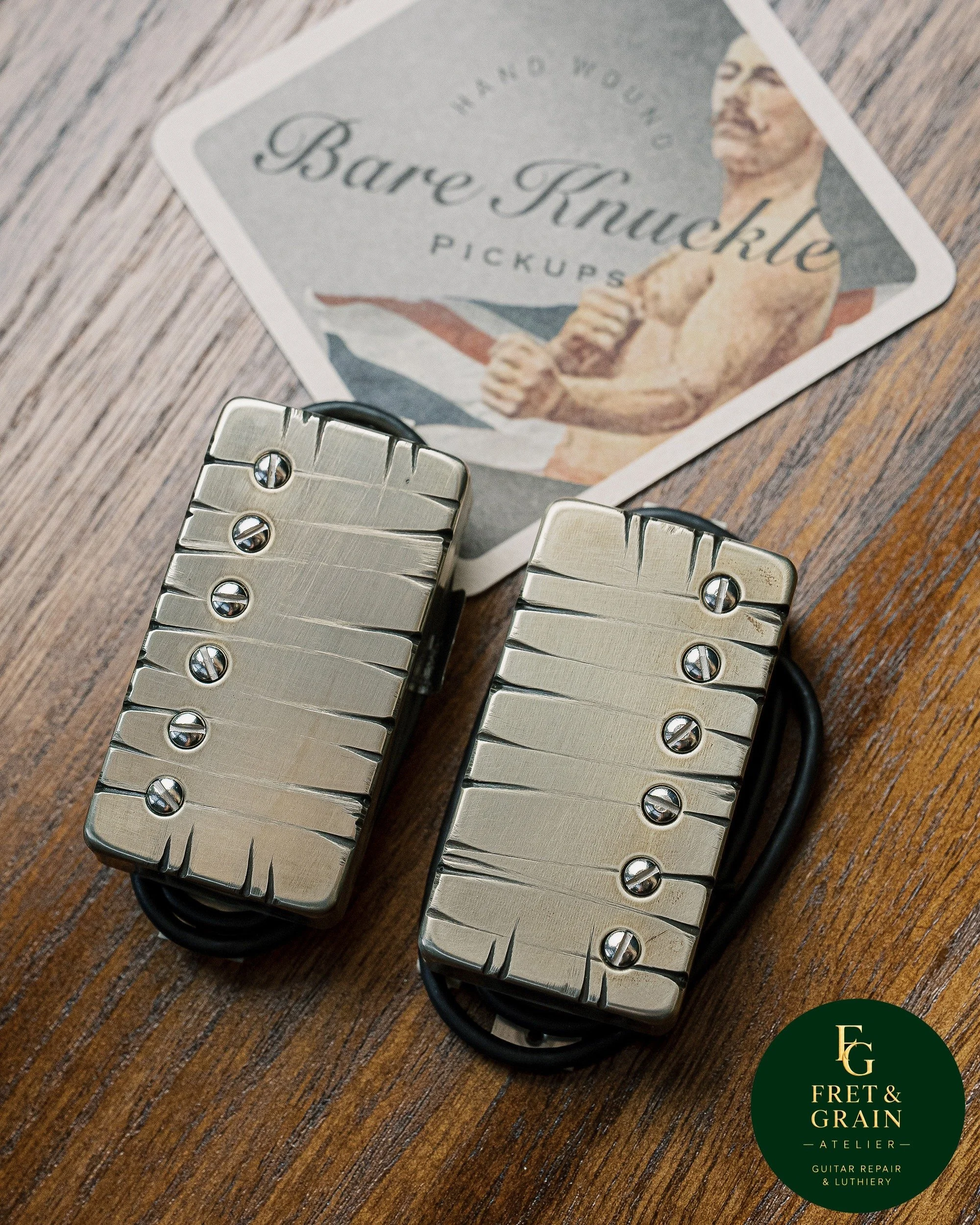

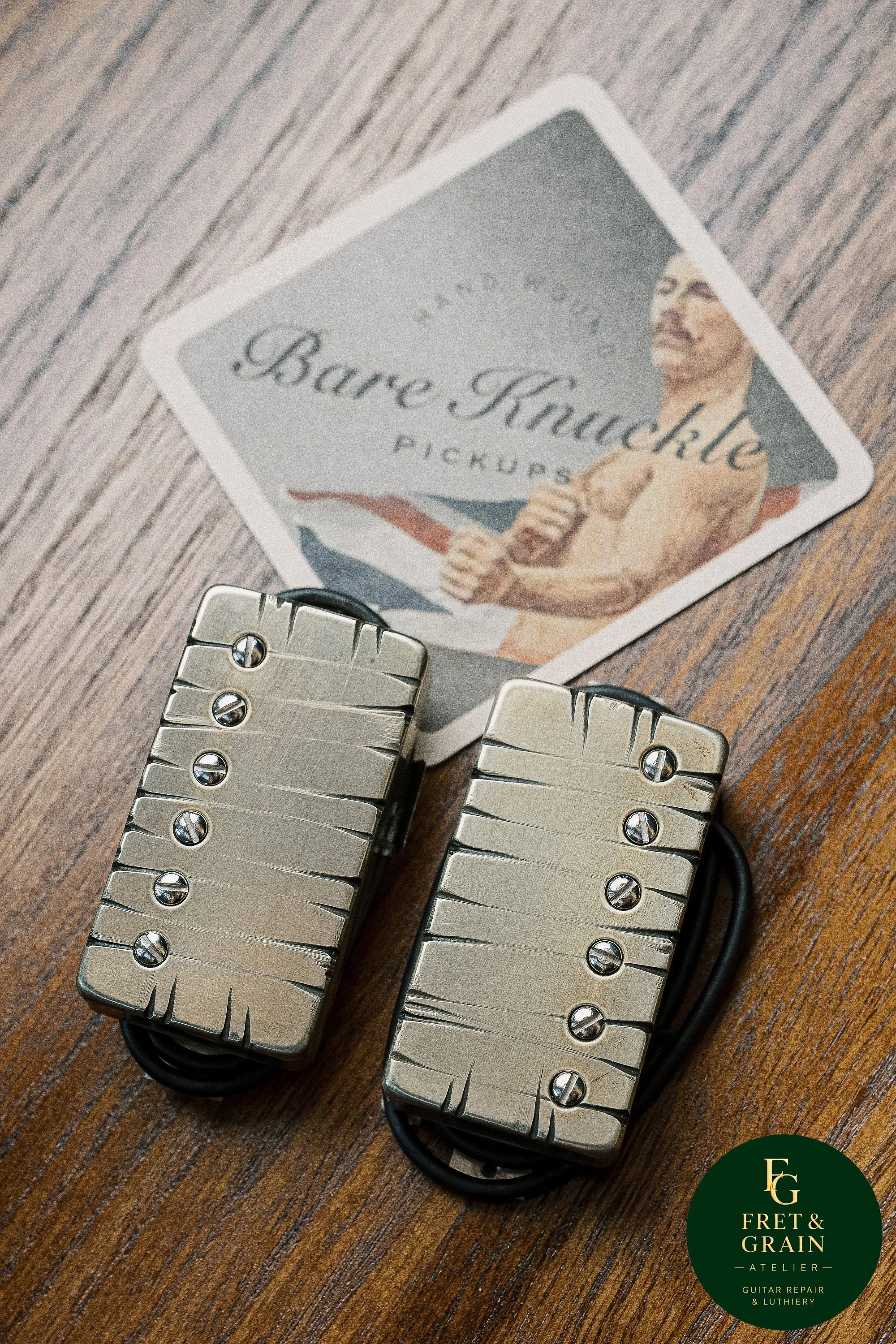

PAINKILLER HUMBUCKER
The Painkiller is the ultimate high-output humbucker for presence and projection, delivering raw, focused crunch, an extremely fast bass response and aggressive upper-mid impact.
The pronounced high-mid peak of the Painkiller, combined with its powerful triple ceramic magnet design, makes it an exceptional choice for progressive and technical metal styles. Tight, resonant lows and an intense pick attack allow it to cut through even the densest mixes with authority.
Clarity is never compromised, regardless of how much gain is applied or how low the guitar is tuned. Pick harmonics are effortless, while the focused midrange and rapid bass response deliver the precision needed for fast, aggressive riffing.
The Painkiller neck humbucker uses a custom-sized ceramic bar magnet to deliver serious output and liquid-like sustain while remaining carefully balanced with the bridge pickup. Although designed primarily for high-gain performance, it also produces fat, modern clean tones. Together, the bridge and neck pickups create a powerful and versatile high-output set.
APPLICATIONS
Punk, Hardcore, Hard Rock, Progressive Metal, Djent, Nu-metal, Thrash, Death Metal, Shred and Extreme Metal.
SUITABILITY
Any solid-body guitar, including heavily detuned and extended-range instruments. Ideal for guitars that require stronger upper-mid punch, an exceptionally fast bass response and a brighter, more defined high end.
SPECIFICATION
Bridge
DC Resistance: 15.6 kΩ
Magnet: Ceramic
Neck
DC Resistance: 13.1 kΩ
Magnet: Ceramic
CONFIGURATION
Bridge
Strings: 6
Top Bobbin Colour: Black
Bottom Bobbin Colour: Black
Cover: Black Battleworn
Pole Screws: Nickel Screws
Pole Screw Spacing: 53 mm
Etch: Bare Knuckle Pickups
Leg Length: Short
Conductors: Four
Neck
Strings: 6
Top Bobbin Colour: Black
Bottom Bobbin Colour: Black
Cover: Black Battleworn
Pole Screws: Nickel Screws
Pole Screw Spacing: 50 mm
Etch: None
Leg Length: Short
Conductors: Four
0.001µF Mallory Treble Bleed
A 0.001µF Mallory capacitor with a resistor is wired in parallel across the volume pot's input and output lugs. It helps retain high-frequency clarity as the volume is rolled down, preventing the tone from becoming dull or muddy.
150kΩ • Single-Coil
0.001µF Mallory + 150kΩ
A smoother, more controlled treble-bleed response. A good starting point for Strat® and Tele®-style single-coils, helping retain clarity without adding excessive brightness.
220kΩ • Humbucker
0.001µF Mallory + 220kΩ
Provides greater high-frequency retention and a more open response. A good starting point for Les Paul®, PRS® and other humbucker-equipped guitars, helping maintain clarity as the volume is reduced.
Quick Guide
150kΩ → Single-coil → Smooth & controlled
220kΩ → Humbucker → Open & articulate
These are recommended starting points. Final selection depends on the pickup, actual pot value, wiring and the player's preferred volume response.
All Boot Camp Strat coils are hand-wound and feature flat-profile Alnico V rod magnets, set in distinctive red and black Forbon flatwork with matching cloth-covered hookup wire. The middle pickup is RWRP, providing hum-cancelling operation when combined with the other coils.
Designed for high-gain applications, these pickups deliver a deep, saturated tone with powerful output, tight lows, and fat, controlled highs.
Applications
Ideal for:
High-gain rock
Progressive metal
Thrash
Hardcore
Extreme metal
Suitability
Suitable for any Strat-style guitar that would benefit from high-output coils with deep, saturated driven tones and fatter, controlled highs.
Specifications
Bridge
DC Resistance: 13.3 kΩ
Magnet: Alnico V
Middle
DC Resistance: 12.1 kΩ
Magnet: Alnico V
RWRP for hum-cancelling with other pickups
Neck
DC Resistance: 12.1 kΩ
Magnet: Alnico V
SILO HUMBUCKER
The Silo is a versatile signature humbucker set designed with guitarist, producer and performer Rabea Massaad, delivering exceptional clarity, depth and dynamic range across clean, ambient and high-gain applications.
The bridge pickup combines powerful Alnico 5 magnetism with a strong, articulate output, producing tight low end, pronounced mids and excellent note definition. It delivers the weight and aggression required for heavy riffing while retaining the clarity needed for complex chord voicings, lower tunings and highly saturated tones.
The neck pickup provides a warmer, more open character with excellent articulation and a full-bodied response. Clean tones remain glassy and expressive, while driven sounds develop a smooth, articulate quality that responds naturally to picking dynamics and changes in volume.
The Silo is equally capable of producing warm, detailed clean tones and crushing high-gain sounds. Its responsive dynamics allow subtle changes in picking attack and volume control to translate clearly, making it particularly effective for players who move between ambient textures, melodic leads, heavy rhythm work and extended chord voicings.
With four-conductor wiring, the Silo set also offers extensive tonal flexibility through series, split-coil and parallel wiring options, providing additional voices without compromising the core character of the pickups.
APPLICATIONS
Progressive Rock, Progressive Metal, Thrash, Hardcore, Extreme Metal, Technical Metal, Classic Rock, Hard Rock and Alternative Rock.
SUITABILITY
Any solid-body guitar, including baritone and multi-scale instruments. Ideal for guitars that require depth, clarity, strong projection and a wide dynamic range across clean, driven and high-gain applications.
SPECIFICATION
Bridge
DC Resistance: 15.7 kΩ
Magnet: Alnico 5
Neck
DC Resistance: 7.18 kΩ
Magnet: Alnico 5
CONFIGURATION
Bridge
Strings: 6
Top Bobbin Colour: Black
Bottom Bobbin Colour: Wood White
Cover: Open
Pole Screws: Burnt Chrome Screw
Pole Screw Spacing: 53 mm
Etch: None
Covered Holes: No
Leg Length: Short Triangular
Conductors: Four
Neck
Strings: 6
Top Bobbin Colour: Wood White
Bottom Bobbin Colour: Black
Cover: Open
Pole Screws: Burnt Chrome Screw
Pole Screw Spacing: 50 mm
Etch: None
Covered Holes: No
Leg Length: Short Triangular
Conductors: Four

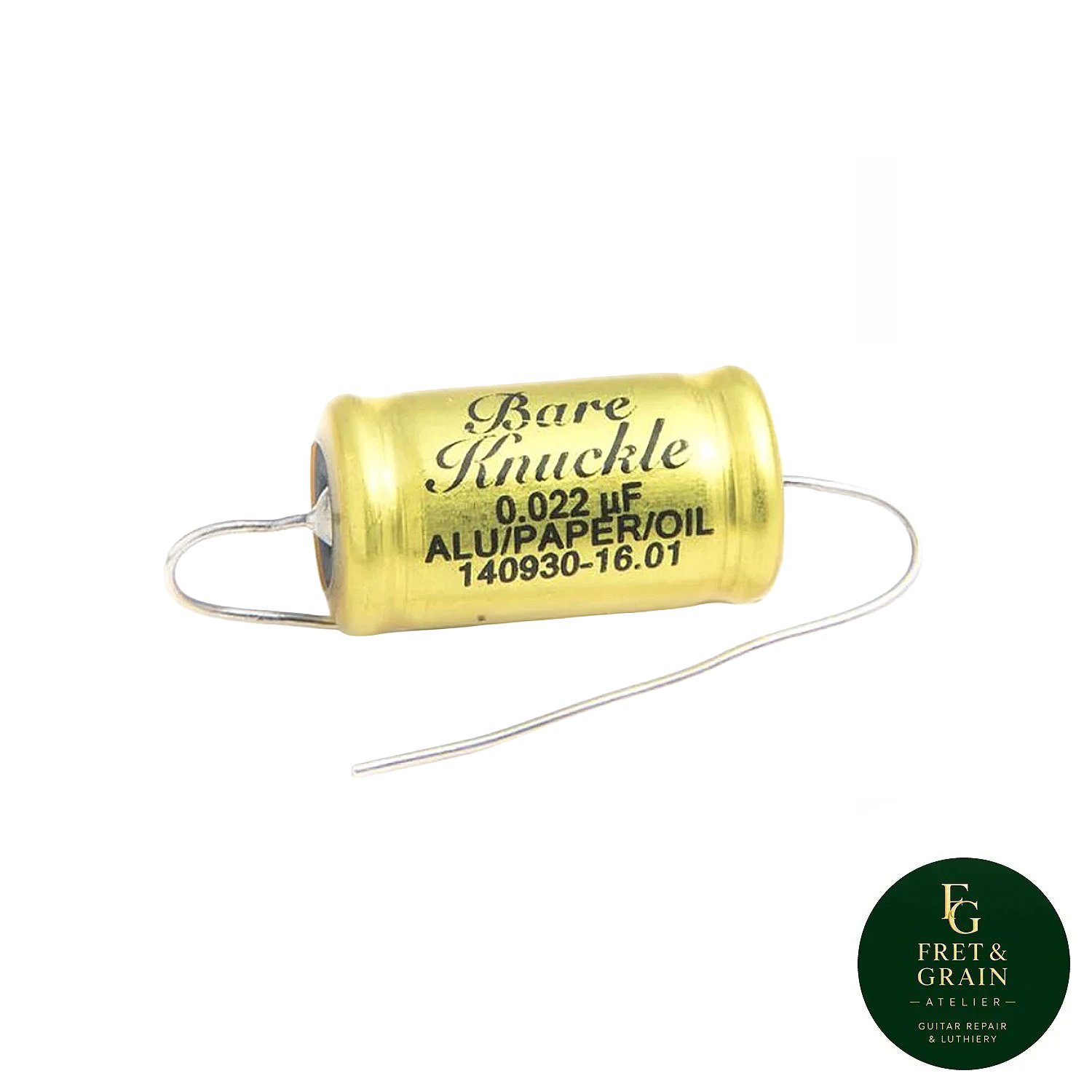

BARE KNUCKLE / JUPITER PREMIUM TONE CAPACITORS
The latest evolution and most comprehensive range yet of our premium paper-in-oil tone capacitors.
Following exhaustive testing, we have worked with Jupiter Condenser in the USA to develop a range of custom-specification capacitors designed to deliver everything we look for in a great guitar tone capacitor.
Every model delivers a clear, defined response throughout the full range of your tone control. They feature aluminium foil construction with silver lead-outs, housed in a hermetically sealed capsule for dependable, long-term performance.
TWO OIL OPTIONS. TWO DISTINCT TONAL FLAVOURS.
For maximum tonal flexibility, we offer two dielectric oil options, each providing a subtly different tonal character.
VITAMIN Q
A synthetic oil that produces a slightly brighter overall response, with a more pronounced, notched and wah-like character as the tone control is rolled back. This version is closest in character to previous generations of our capacitors, particularly the older Jensen models.
MINERAL OIL
A more rounded and warm character, delivering a smoother and more even response as the tone control is rolled back.
THREE CAPACITANCE OPTIONS
Each oil type is available in three carefully selected capacitance values:
0.047µF
Produces a deeper, darker response. Particularly well suited to single-coil pickups and pairing with a 280kΩ tone pot.
0.022µF
Our versatile all-round value, offering a balanced response across a wide range of pickups and playing styles.
0.015µF
Provides a slightly brighter and more open response, making it an excellent choice for a neck pickup tone control when you want to retain clarity and definition.
Premium 304 stainless steel pickguard screws designed for Fender-style electric guitars, including Stratocaster® and Telecaster® models. Manufactured from corrosion-resistant stainless steel, these screws provide excellent durability and a clean, professional finish.
Designed for a flush-mounted fit, they help achieve a neat, precise installation for guitar builds, upgrades, and restoration projects. Ideal for guitar technicians and DIY enthusiasts who appreciate attention to detail and finishing perfection.
Features
Material: 304 Stainless Steel
Quantity: 20 pieces per pack
Flush-Mount Design: For a clean, professional finish when properly installed
Corrosion Resistant: Helps resist rust and oxidation
Durable Construction: Suitable for guitar assembly, maintenance, and upgrades
Compatibility: Fender-style pickguards on Stratocaster®, Telecaster®, and compatible electric guitars
Package Includes
20 × Stainless Steel 304 Pickguard Screws
HALCYON HUMBUCKER
The Halcyon is a high-output signature humbucker set developed with Spiritbox guitarist Mike Stringer, designed to deliver massive modern tones, exceptional clarity and consistent string-to-string response across low tunings.
The bridge pickup uses a twin-blade design and three custom-sized ceramic magnets to provide exceptional string balance while tightly controlling the low end. Its high-output wind delivers an aggressive attack, powerful midrange and substantial low-end weight, giving single-note riffs impressive thickness while keeping ultra-low chugs tight and articulate.
The neck pickup uses a more moderate wind paired with an Alnico 5 magnet, providing greater dynamic headroom and a woody, bright character without becoming harsh. Its articulate response works particularly well for clean and ambient tones, while combining naturally with the bridge pickup for distinctive modern clean sounds.
The twin-blade construction provides even string-to-string balance regardless of string gauge or tuning and is particularly practical for multi-scale instruments. Both pickups are also designed to deliver highly effective coil-split and parallel tones, providing additional tonal flexibility beyond their primary high-output voices.
The Halcyon set is particularly suited to players working in heavily detuned environments who require the power and immediate response of a high-output pickup while retaining the clarity and consistency needed to remain defined within dense mixes.
APPLICATIONS
Modern Metal, Progressive Metal, Djent, Alternative Metal and other modern high-gain playing styles.
SUITABILITY
All solid-body guitars, particularly baritone and multi-scale instruments. Ideal for guitars that require exceptional string-to-string balance, tight low-end control, aggressive attack and the combination of high output with strong dynamic headroom.
SPECIFICATION
Bridge
DC Resistance: 17.9 kΩ
Magnet: Ceramic
Neck
DC Resistance: 7.9 kΩ
Magnet: Alnico 5
CONFIGURATION
Bridge
Strings: 6
Top Bobbin Colour: Black
Bottom Bobbin Colour: White
Cover: Open
Blade Colour: Nickel Blade
Etch: None
Leg Length: Short Triangular
Conductors: Four
Neck
Strings: 6
Top Bobbin Colour: White
Bottom Bobbin Colour: Black
Cover: Open
Blade Colour: Nickel Blade
Etch: None
Leg Length: Short Triangular
Conductors: Four
APACHE SINGLE COIL STRAT & STORMY MONDAY HUMBUCKER SET

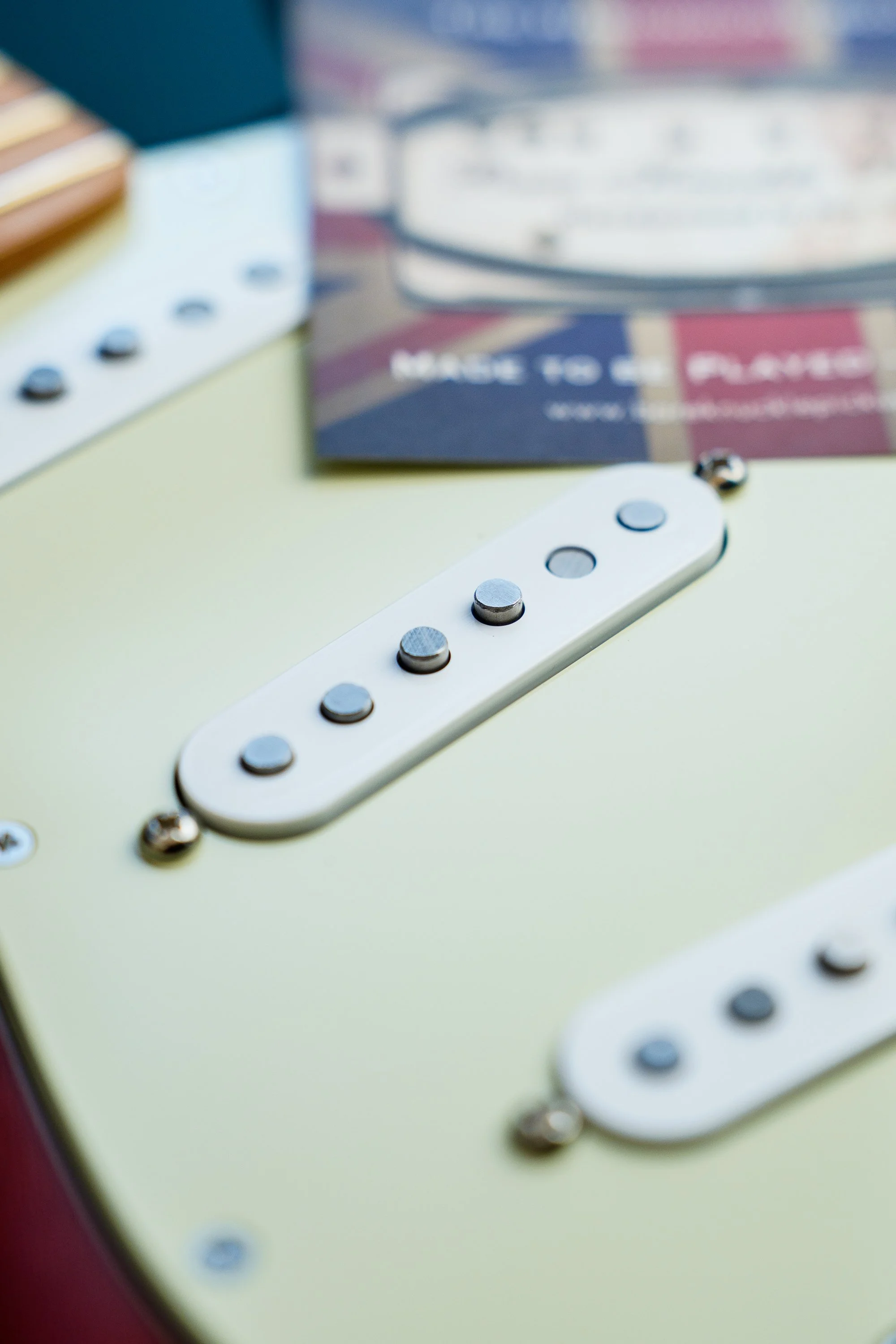

APACHE SINGLE COIL STRAT
Pure, full-bodied early-'50s Strat tone with exceptional dynamics.
The Apache is a full-bodied early-'50s single coil set delivering exceptional natural sustain and low string pull from its Alnico III magnets.
Based on the rounder, fatter tones of the original '54 to '57 coils, the Apache delivers a deep bottom end, bell-like high-end chime and rich, wide-ranging mids. Clean tones are crystal clear and articulate without becoming harsh or thin, while overdriven tones remain full and crunchy with plenty of body for single-note work.
Scatter-wound by hand using vintage-correct Heavy Formvar wire, the bridge coil is wound slightly hotter for improved balance across the set. Calibrated Alnico III magnets are hand-bevelled and mounted into fibreboard flatwork, available in either the original '54 stagger with a low G magnet or the more common '56 stagger.
The Apache's low magnetic pull allows excellent dynamics, natural sustain and accurate intonation.
APPLICATIONS
Country, Surf, Jazz, Blues, Funk, Indie, Pop and Classic Rock.
SUITABILITY
Particularly well suited to Maple-board Strat-style guitars with lightweight Ash bodies, but equally at home in Alder-bodied instruments with Rosewood fretboards.
SPECIFICATION
Middle
DC Resistance: 5.6 kΩ
Magnet: Alnico 3
Neck
DC Resistance: 5.6 kΩ
Magnet: Alnico 3
STORMY MONDAY HUMBUCKER
Sweet, articulate PAF character with warm bass, hollow mids and smooth high-end.
The Stormy Monday is a highly dynamic, authentically vintage humbucker, completely hand-wound using vintage-correct 42 AWG plain enamel wire and handcrafted with butyrate bobbins, a calibrated sand-cast Alnico II magnet and a solid nickel-silver baseplate and cover.
Inspired by the early 'Patent Applied For' PAF humbuckers, its asymmetrically wound coils provide an extended frequency response, excellent string separation and exceptional touch sensitivity.
The Stormy Monday recreates the brighter character of the '57 and '58-era PAFs, combining smooth natural sustain with excellent pick dynamics. Warm and full low notes, sweet mellow highs and slightly scooped mids create a soft, percussive vintage voice.
APPLICATIONS
Blues, Country, Jazz, Funk, Indie, Reggae and Classic Rock.
SUITABILITY
Suitable for solid-body, semi-acoustic and hollow-body guitars, or any instrument that would benefit from a warmer, brighter and more dynamic vintage tone.
SPECIFICATION
Bridge
DC Resistance: 7.7 kΩ
Magnet: Alnico 2
APACHE SINGLE COIL & STORMY MONDAY SET CONFIGURATION
Bridge - Stormy Monday
Strings: 6
Top Bobbin Colour: Black
Bottom Bobbin Colour: Black
Cover: Black
Pole Screws: Nickel Screws
Pole Screw Spacing: 53 mm
Etch: None
Leg Length: Short
Conductors: Four
Middle - Apache
Strings: 6
Cover: Black
Magnet Profile: Flat
Polarity: RW/RP
Zinc-Plated Steel Base: No
Neck - Apache
Strings: 6
Cover: Black
Magnet Profile: Flat
Zinc-Plated Steel Base: No
BLACK HAWK HUMBUCKER SET
The power and clarity of an active pickup, with the tone, dynamics and responsiveness of a passive.
The Black Hawk is a radical-looking humbucker designed for players who want the output and transparency of an active pickup without sacrificing the character, dynamics and control of a passive design. Best of all, it delivers this performance without the need for batteries.
Each coil features specially annealed, nickel-plated steel blades that provide an even magnetic field across the strings, ensuring excellent string-to-string balance and a consistent response across the entire fretboard.
While its DC resistance may appear moderate on paper, the specially designed coils, blade construction and custom-calibrated magnets deliver substantial output without compromising dynamics. The Black Hawk remains highly responsive to pick attack and volume adjustments, allowing players to move effortlessly between clean, driven and high-gain tones.
The low end is deep, tight and exceptionally fast-tracking, making it ideal for precise riffing and lower tunings. High notes remain full and powerful, even high up the fretboard, supported by broad mids and solid, articulate highs. Despite its high-output capability, the overall response remains clear and detailed without becoming harsh or clinical.
Hand scatter-wound with 42 AWG Heavy Formvar wire, the Black Hawk is available with different magnet configurations to tailor its response. The bridge pickup can be powered by either a trio of Ceramic magnets for maximum speed, aggression and output, or a trio of Alnico V magnets for a smoother, more organic response. The neck pickup uses Alnico V for a clear, dynamic and expressive voice.
From Jazz and Fusion to Hard Rock and the most extreme forms of Metal, the Black Hawk offers a vast range of contemporary tones with exceptional clarity, power and control.
APPLICATIONS
Jazz, Fusion, Funk, Hard Rock, Progressive Metal, Djent, Nu-Metal, Thrash, Death Metal, Metalcore and Extreme Metal.
SUITABILITY
Suitable for any solid-body or semi-acoustic guitar.
SPECIFICATION
Bridge
DC Resistance: 8.6 kΩ
Magnet: Alnico 5
Bridge Option
DC Resistance: 8.6 kΩ
Magnet: Ceramic
Neck
DC Resistance: 8.0 kΩ
Magnet: Alnico 5
BLACK HAWK HUMBUCKER CONFIGURATION
Bridge
Strings: 6
Top Bobbin Colour: Black
Bottom Bobbin Colour: Black
Cover: Open
Blade Colour: Nickel Blade
Etch: None
Leg Length: Short Triangular
Conductors: Four
Magnet: Alnico 5
Neck
Strings: 6
Top Bobbin Colour: Black
Bottom Bobbin Colour: Black
Cover: Open
Blade Colour: Nickel Blade
Etch: None
Leg Length: Short Triangular
Conductors: Four
Magnet: Ceramic
